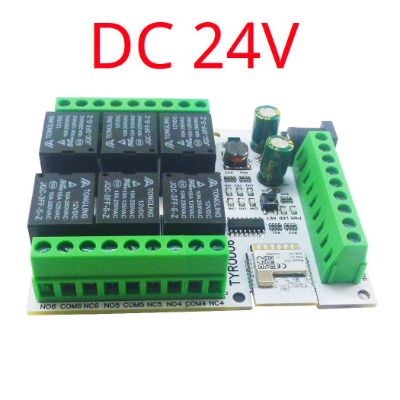

6 DI-DO DC 24V IOS Android Smart Wifi Relay 2.4G RF Remote Control IOT Switch NPN IN Dry Contact Out Tuya Smart Life APP

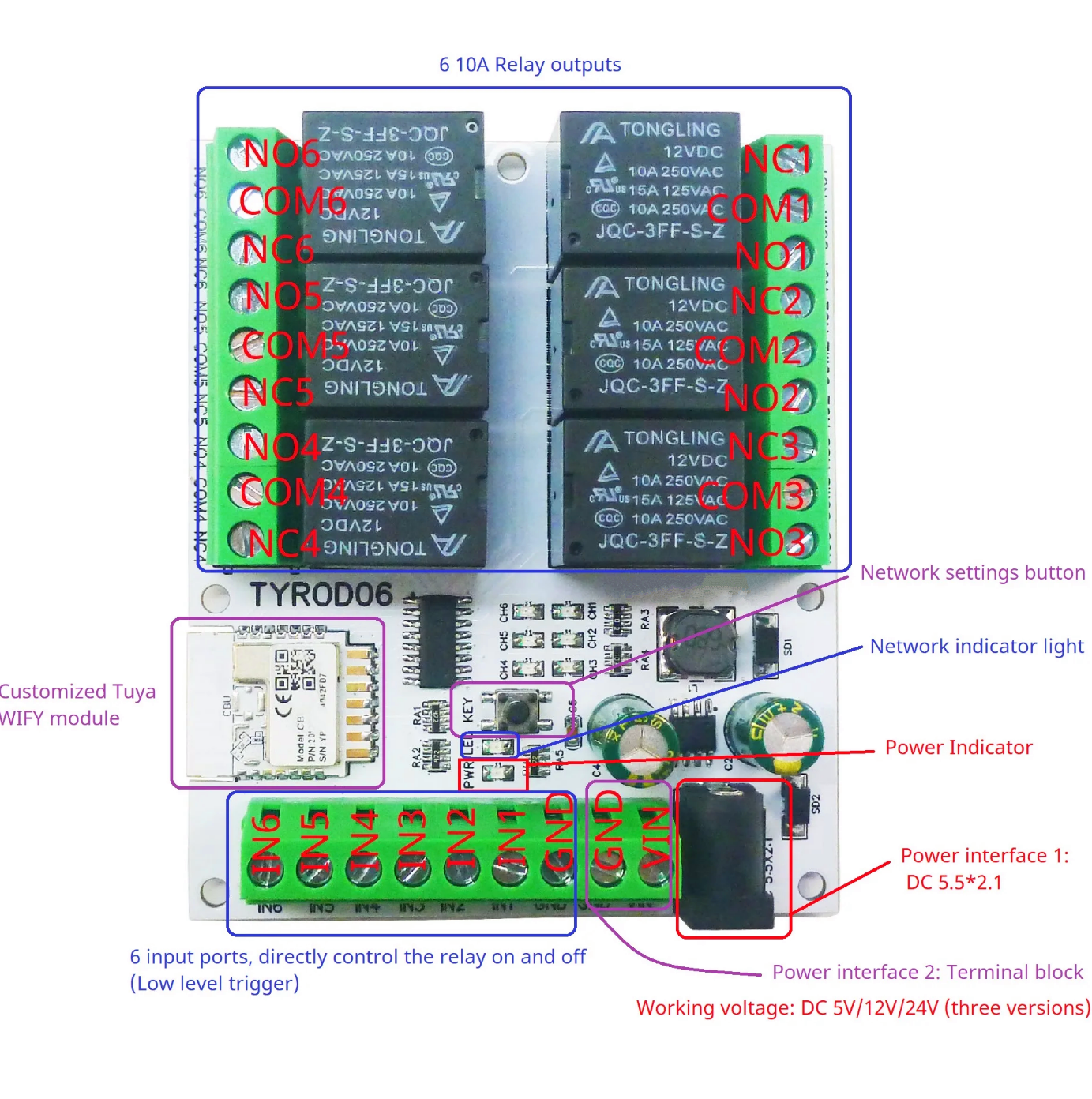

Publish: 2026-07-29 22:33:27 View: 465This is the first WIFI smart relay module. It has 6-channel NPN input ports and 6-channel 10A relay dry contact ports.

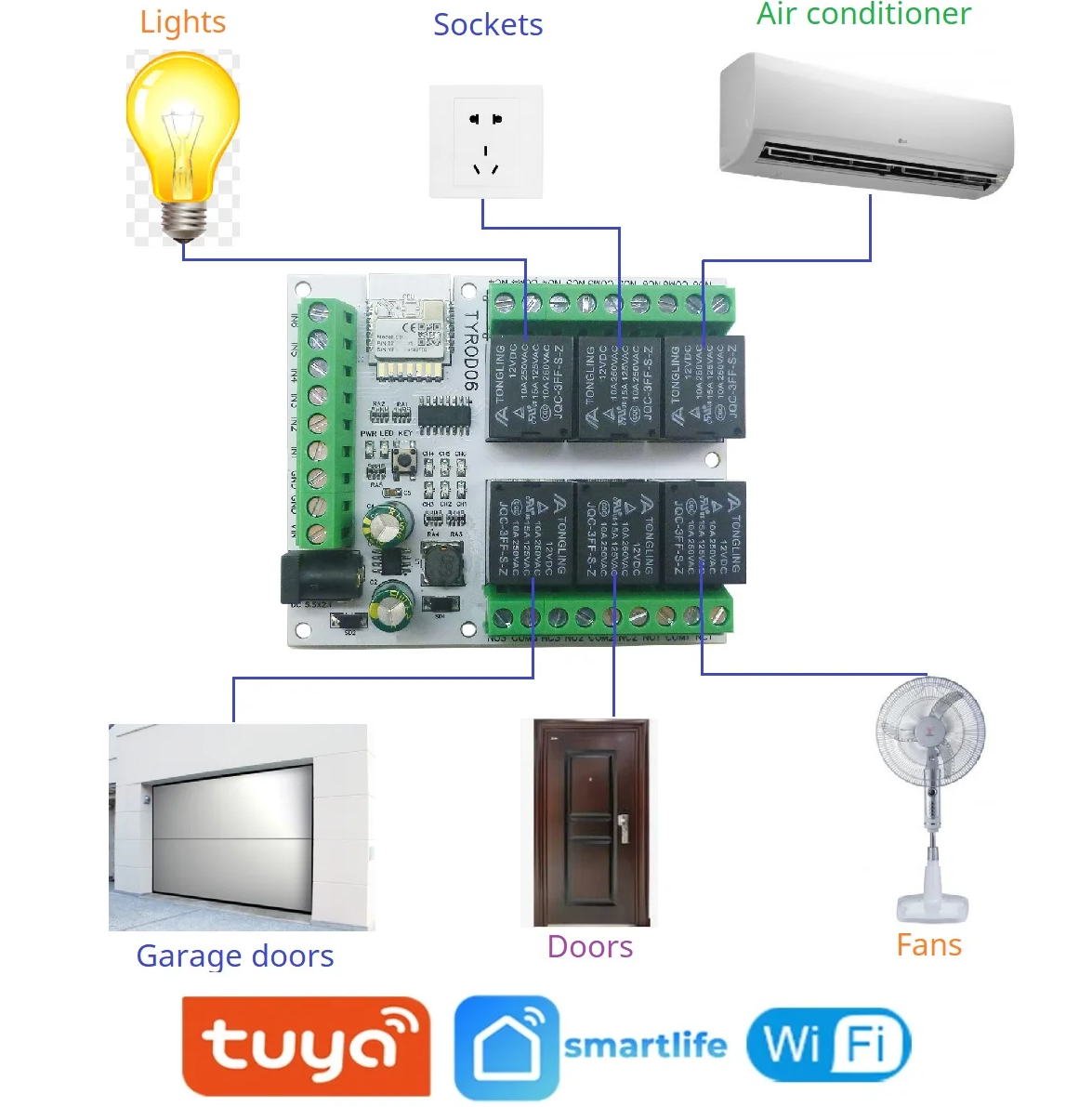

Each output port has three contacts: NC, COM, and NO. Using this module, you can easily achieve ultra-remote control
of home appliances.
Product parameters:
1. Working voltage: DC 5V/12V/24V(Three voltage versions)
2. Working current (DC 12V): standby 12MA, WIFI connection status 20-25MA, 1 relay on 48MA, 2 relays on 72MA,
3 relays on 102MA, 4 relays on 129MA, 5 relays on 160MA, 6 relays on 192MA
3. WiFi 2.4 ghz b/n/g
4. 6 input channels, can directly control relay ON/OFF
5.6 10A relay outputs with NC COM NO ports
6. Support TUYA and smartlife APP, support Android and Apple mobile phone operating systems
7. Through the APP, the following functions can be realized: ON/OFF, Countdown, Timing, Cycle timing, Random timing, Inching switch
Size: 86*72*20MM
8. Weight: 107grams
9. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

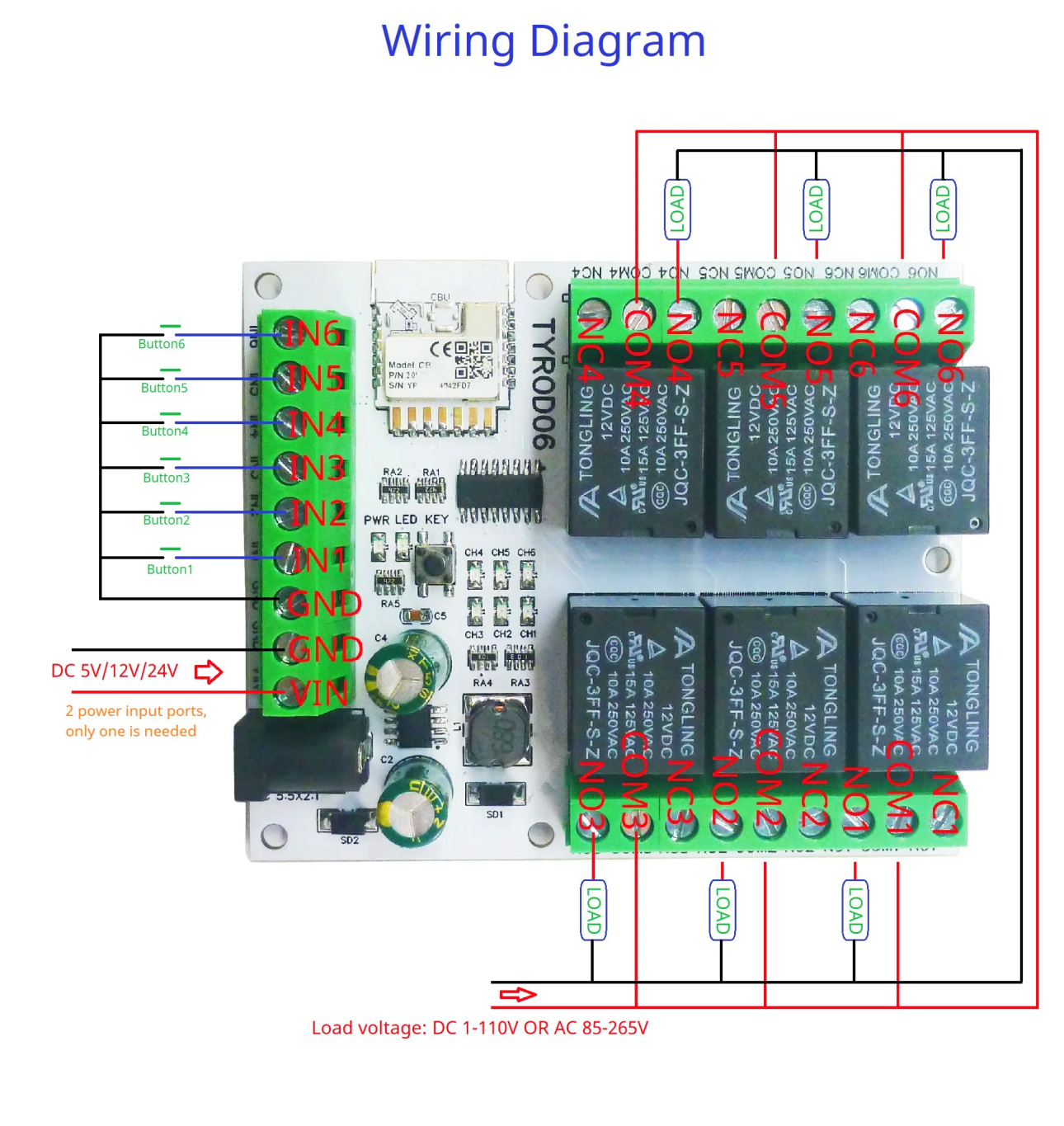

How to use:
1 Download ''Tuya Smart'' OR ''Smart Life'' APP in the App Store
2 Follow the prompts of the APP to register and log in to your account
3 Follow the video ''TYROD06 first time using Demo'' to configure the network
